Laser Tracking

Highest precision for your product - Laser Tracker enable precise, tactile geometry detection and individually customised measurement concepts.

Leica Absolute Tracker AT960
Leica Absolute Tracker 960

Our Leica Laser Tracker are highly precise and extremely mobile, which is why they are also called mobile coordinate measuring machines (mCMM). Depending on the application, we use the long-term stable AT 901 or the brand new, compact AT 960.

With its compact dimensions, light weight and durable battery operation, the AT 960 can even be used in places that were previously unavailable for high-precision industrial metrology. The flexible combination with the Leica T-Probe allows the measurement of inaccessible points with high tolerance requirements.

Laser Tracker from Leica enable a point accuracy of up to 10 micrometre based on interferometric laser distance measurements, even free-handed due to a possible sampling rate of 1000 Hz.

You as customer benefit from the use of various Laser Tracker by mainly having the following advantages:

  • High mobility due to compact design and battery operation
  • Flexibility due to the combination with T-Probe and T-Scan
  • High efficiency through rapid measurement and fast response times
  • Highest possible precision
  • Reliable results through long-term stable sensors of Leica instruments

By using the latest Laser Tracker technology, we are not only able to measure directly with sphered prisms, but also indirectly on concealed items out of sight of the instrument by using hand-operated auxiliary modules. A hand-held scanning module allows us to highly accurate dimensional measurement of comprehensive surfaces. You as a customer benefit from less changings of positions and significantly shorter measurement times:

Leica AT 960
Leica AT 960

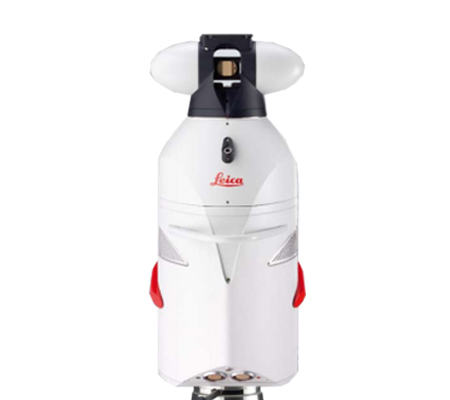

Leica AT 901
Leica AT 901
Leica T-Probe
Leica T-Probe

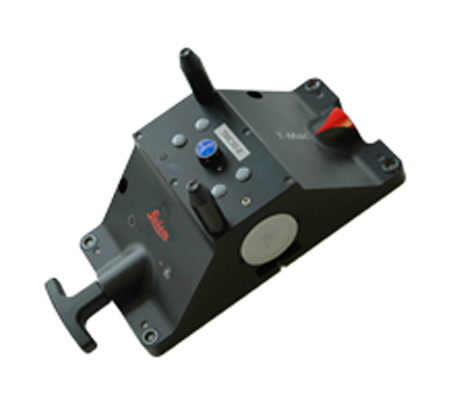

Leica T-MAC
Leica T-MAC
Leica T-Scan
Leica T-Scan



The engineers at Dr. Hesse und Partner have more than 10 years experience in industrial metrology. We consistently invest in modern sensor technology and train our employees on a regular basis, because we know, only this can ensure high quality and reliability.

In addition to our measurement services, we also provide consulting on the measurement task, the selection of the instruments as well as the creation of the measurement instruction. Project management from a single source - that's for sure.
